SMTP

To send event-related emails to a specified address when an event occurs, the following information must be set in advance. To make these settings, click the 'Update' button at the bottom of the SMTP tab page.

SMTP Host

The IP address or domain name of the SMTP server (e.g., mail.tmail.com)

• Input Rules: No restrictions on the format of the input value.
• Input Value Length: 1 ~ 100 characters
• Default Input Value: The previously set value

If the rules above are violated when entering values, the following error message will be displayed.

Please enter an SMTP host within 100 characters.

SMTP Port

The listening port number of the SMTP server

• Input Rules: Numbers only
• Input Value Range: 1 ~ 49151
• Default Input Value: The previously set value

If the rules above are violated when entering values, the following error message will be displayed.

Please enter an SMTP port between 1 and 49151.

Sender Name

The sender's name displayed in the email

• Input Rules: No restrictions on the format of the input value.
• Input Value Length: 1 ~ 100 characters
• Default Input Value: The previously set value

If the rules above are violated when entering values, the following error message will be displayed.

Please enter a sender name.

SMTP Account Address

The login ID for the SMTP server (entered in email address format)

• Input Rules: Email format (e.g., 'aaa@xxx.yyy')

  aaa: The local part of the email address, where the allowed characters include uppercase and lowercase English letters, numbers, and certain special characters. At least one of these must be included. The allowed special characters are: ‘!’, ‘#’, ‘$’, ‘%’, ‘&’, ‘’’, ‘+’, ‘/’, ‘=’, ‘^’, ‘_’, ‘`’, ‘{‘, ‘|’, ‘}’, ‘~’, ‘?’.

  @: The "at" symbol that separates the local part and the domain part of the email address.

  xxx: The domain part of the email address, where the allowed characters include uppercase and lowercase English letters, numbers, and hyphens (‘-’), and at least one of these must be included.

  yyy: The subdomain after the domain part, represented by a period and additional characters. The allowed characters include uppercase and lowercase English letters, numbers, and hyphens (‘-’), and at least one of these must be included.

• Input Value Length: 1 ~ 100 characters
• Default Input Value: The previously set value

If the rules above are violated when entering values, the following error message will be displayed.

Please enter an SMTP account address in email format.

SMTP Account Password

Password for logging into the SMTP Server

• Input Rules:

  At least one uppercase letter, one lowercase letter, one number, and one special character ($!@%*#?&) must be included.
  If this rule is violated, the error message “SMTP account password does not meet the rules.” will be displayed.

  Repetitive characters or numbers should not be entered consecutively.
  If this rule is violated, the error message "SMTP account password does not meet the rules." will be displayed.

  Sequential characters or numbers on the keyboard should not be entered.
  If this rule is violated, the error message “SMTP account password does not meet the rules.” will be displayed.

• Input Value Length: 10 ~ 20 characters
• Default Input Value: Not displayed for security reasons

If the rules above are violated when entering values, the following error message will be displayed.

The SMTP account password does not meet the rules.

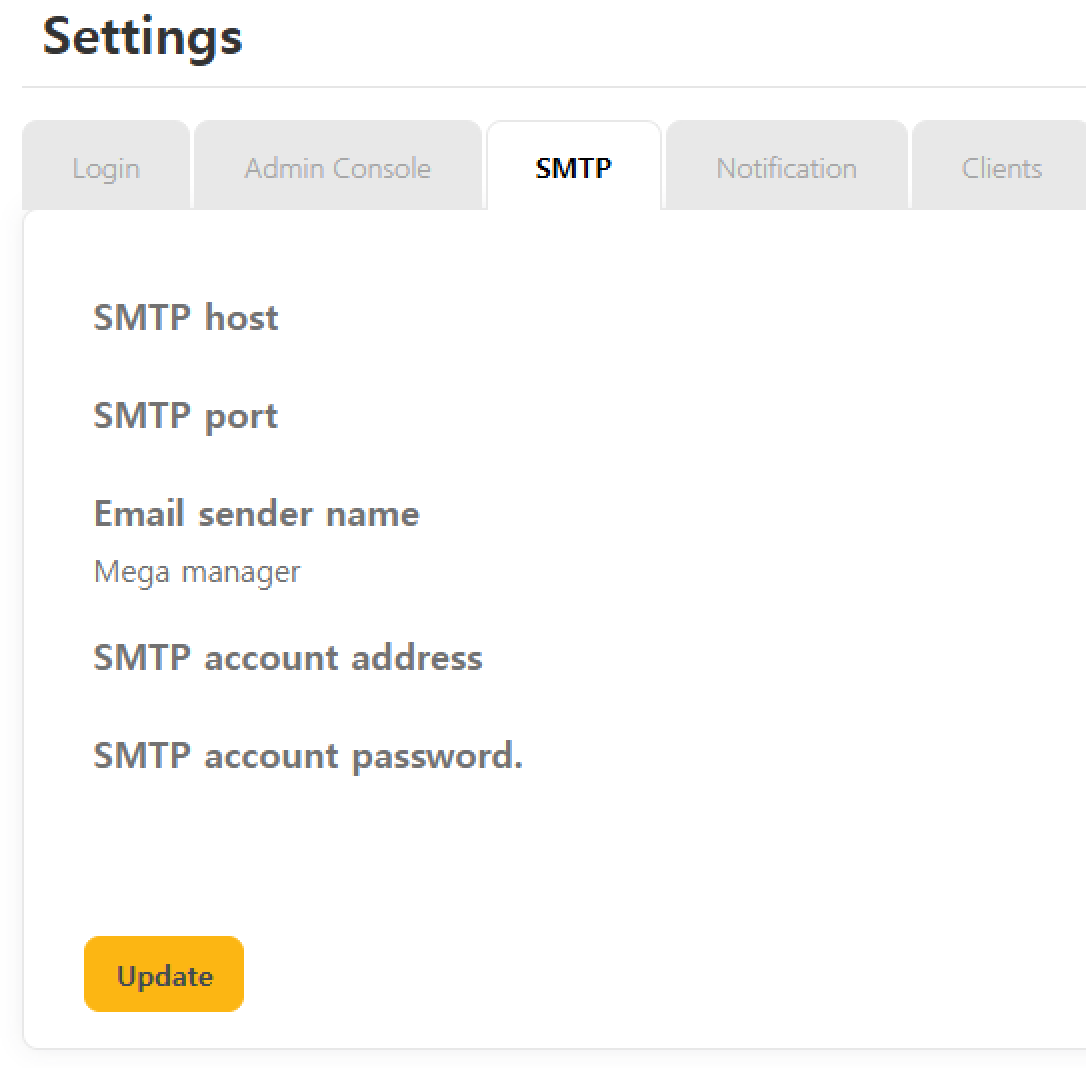

SMTP tab page screen

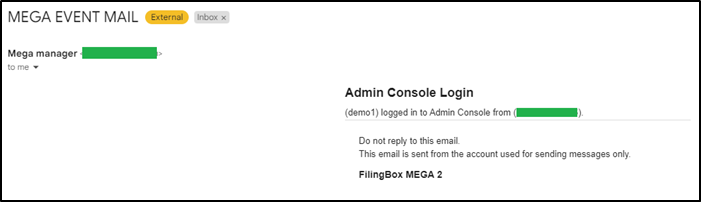

Sent email
