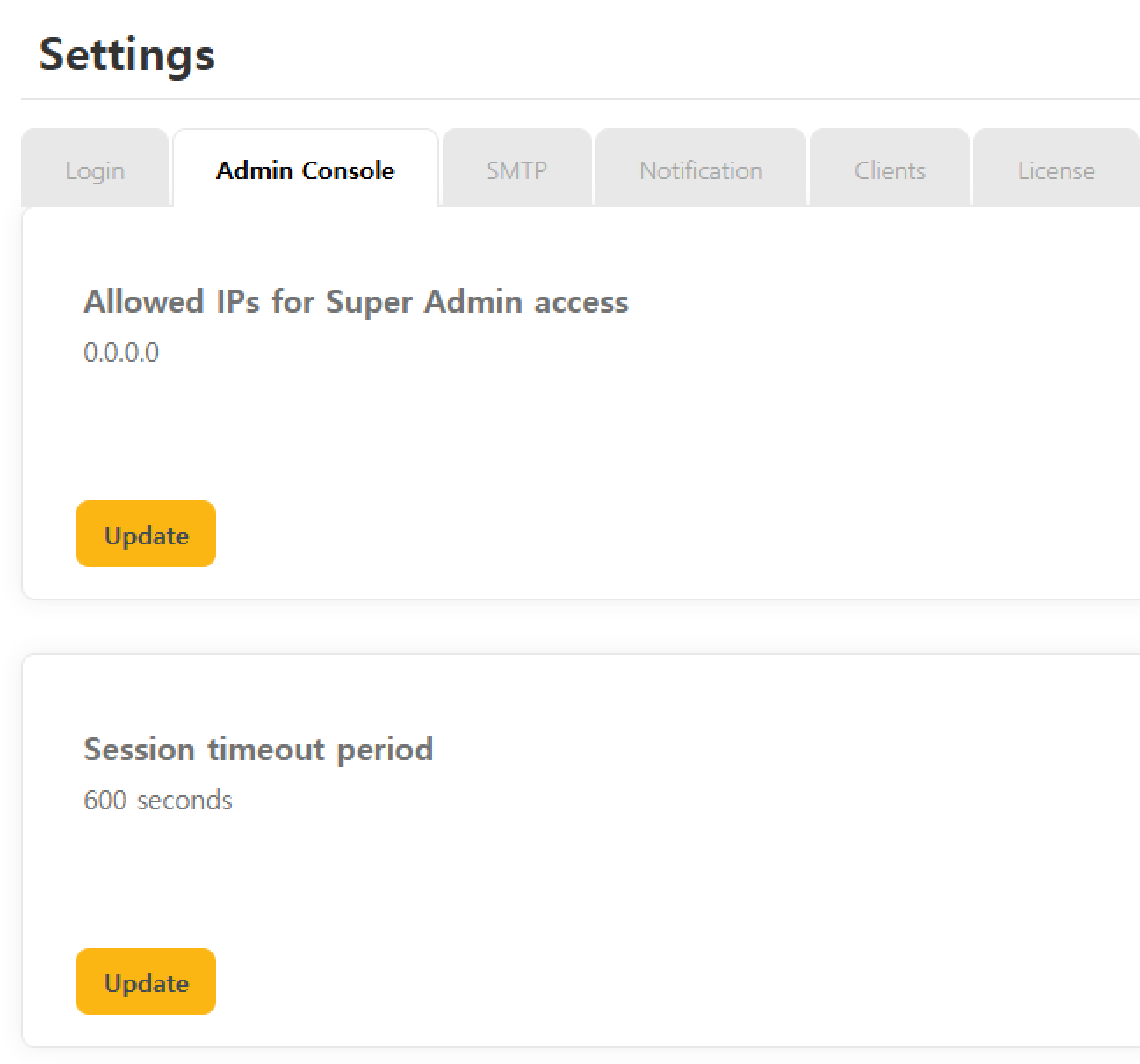

Admin console

Provides policy configuration features related to access to the administrator web UI, as shown below. In each policy section, clicking the 'Update' button allows you to change the current settings.

Permitted IP addresses for super admin console access

The super administrator is allowed to access the administrator web UI only from pre-registered systems. This feature allows you to register the IP addresses of systems that can access the administrator web UI.
Click the 'Update' button below to modify the settings. The input rules are as follows:

• Input rules:
  Enter an IPv4 address in the format 'x.y.z.u' (x, y, z, u: Numbers between 0 and 254 are allowed. However, values representing an entire network, such as 'x.y.z.0', are not permitted).
  Up to two IP addresses can be entered, and addresses must be separated by commas (e.g., x.x.x.x,y.y.y.y,z.z.z.z,a.a.a.a,b.b.b.b).
• Input value length: Minimum 7 characters, maximum 31 characters
• Default value: The value set during installation

If the rules above are violated when entering values, the following error message will be displayed.

The permitted IP address for super admin console access does not match the IP format.

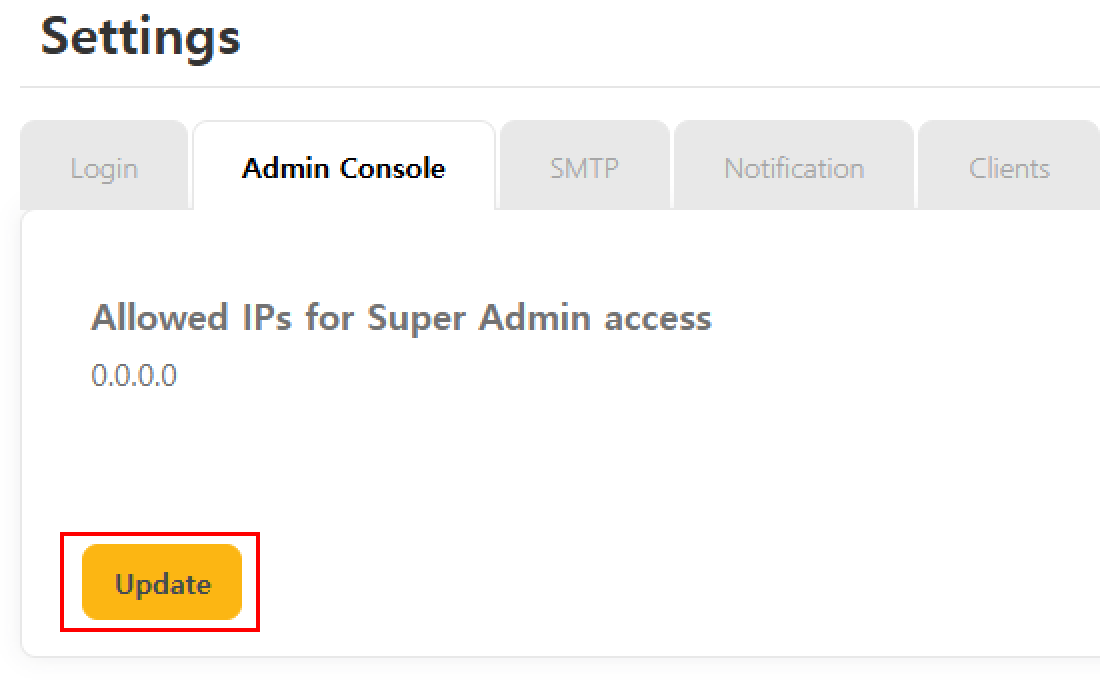

'Update' button screen

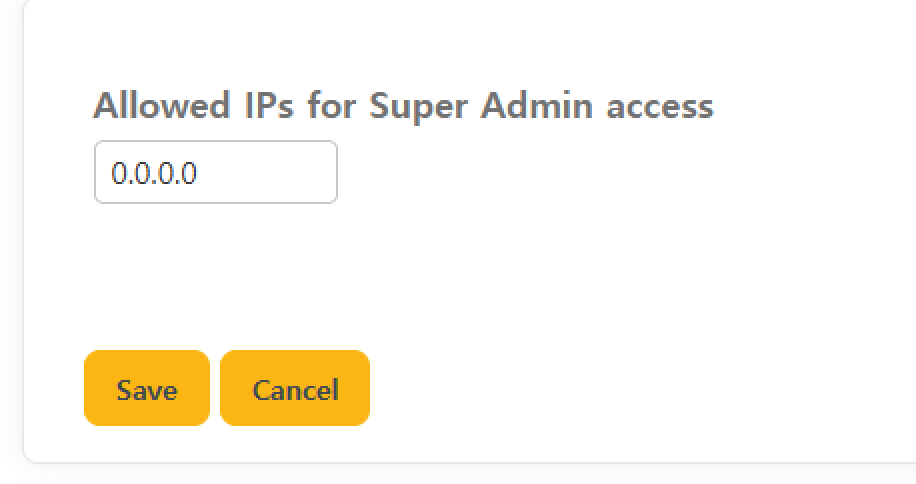

'Update' button click screen

Auto logout interval for admin console

Provides a feature that automatically logs out administrators from the web UI if no actions are performed on the web browser for a specified period.

Clicking the 'Update' button below allows you to modify the time value, following the rules specified below.

• Input rules: Numbers between '60 and 600'
• Input value length: 2 to 3 characters
• Default value: 600

If the rules above are violated when entering values, the following error message will be displayed.

The admin console auto logout interval must be a number between 60 and 600.

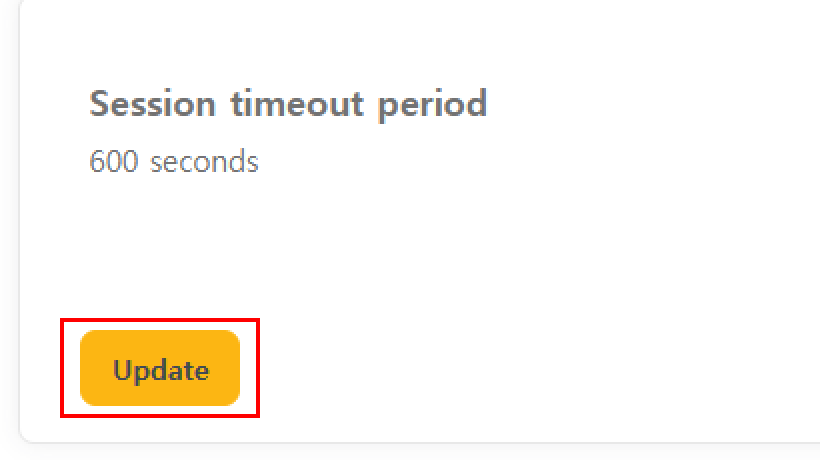

'Update' button screen

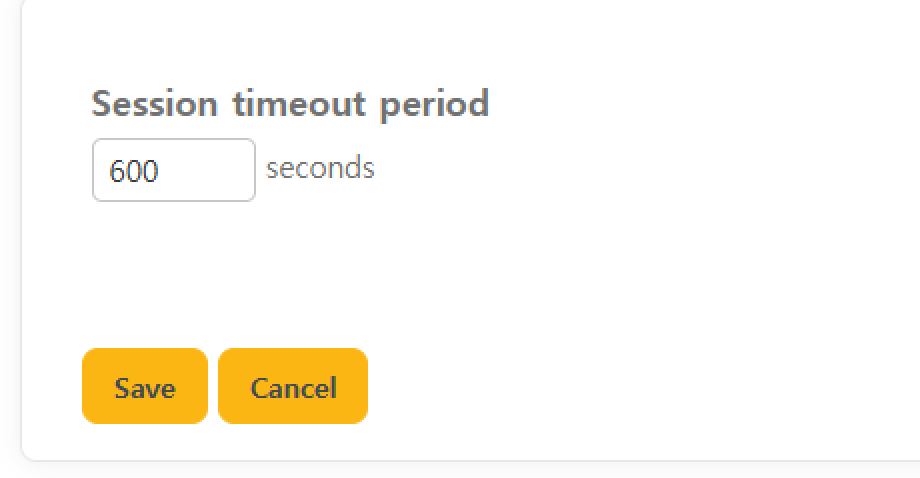

'Update' button click screen
