Minimum system requirements for installation

 FilingBox MEGA2 v2 Windows Client

Software / Hardware requirements

Category	Requirements
CPU	Intel(R) Core(TM) i5-7600 CPU @ 3.5 GHz or higher
RAM	8 GB or higher
SSD	At least 10 GB of space required for installation
NIC	At least one 100/1000 Mbps NIC
OS	Windows Server 2016 64-bit Version 1607, OS Build 14393.693

System access requirements for installation

To install the FilingBox MEGA2 v2 Windows Client package, log in with an Administrator account.

How to check OS version

To check the OS version on a PC with Windows OS installed, follow the steps below:

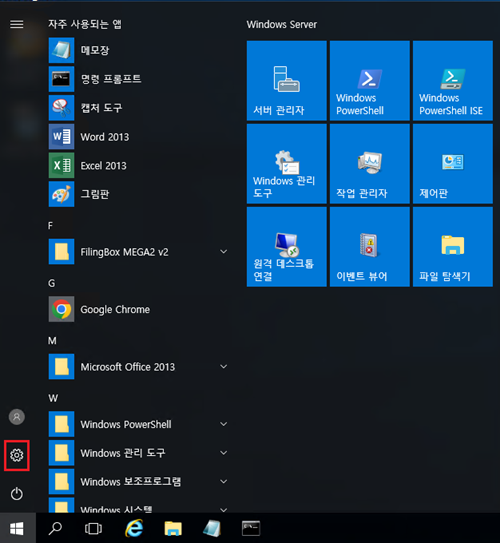

1. Click the Home button > Select the Settings menu
   Click the Microsoft button at the bottom left of the screen, then select the ‘Settings’ menu.

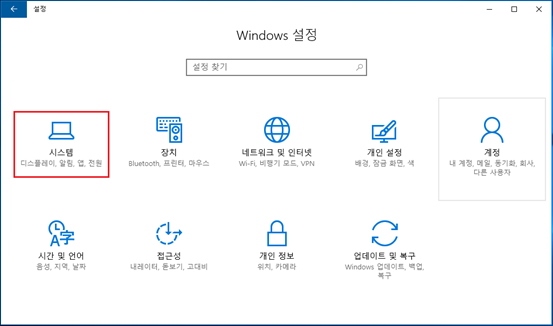

2. Select Settings Home > System menu
   From the Settings homepage, select the System menu.



3. Select System Page > Information menu
   After selecting the 'Information' menu, check the Windows specifications.



Ports used for product operation

There are no specific ports used for the operation of FilingBox MEGA2 v2 Windows Client.

Important

While there are no ports required for product operation, you should check the ports currently in use and remove or disable any unnecessary ports.

FilingBox MEGA2 v2 Linux Client

Software / Hardware requirements

Category	Requirements
CPU	Intel(R) Core(TM) i5-13400 CPU @ 2.50 GHz or higher
RAM	16 GB or higher
SSD	At least 10 GB of space required for installation
NIC	At least one 100/1000 Mbps NIC
OS	Rocky Linux 8.8 64-bit (Kernel 4.18.0-477.10.1)

System access requirements for installation

To install the FilingBox MEGA2 v2 Linux Client package, you must log in to the installation system as the 'root' account.

How to check the OS version

After logging in as the 'root' account, execute the following command to check the OS version.

cat /etc/redhat-release

Warning

Be careful not to create unnecessary OS accounts or use unused ones.

FilingBox MEGA2 v2 Linux Client configuration

The FilingBox MEGA2 v2 Linux Client installation package file (tgz file) consists of the following components

Installation Package File (tgz file)	Information
install_mega_linuxclient.sh	Client installation script
remove_mega_linuxclient.sh	Client uninstallation script
libcrypto.so.3	openssl 3.0 file
libssl.so.3	openssl 3.0 file
fbmegas	Main process
pushc	Process that receives integrity check requests from the server, executes the operation, and returns the result
Integrity	Process that periodically performs integrity check operations
process	Process that monitors the status of the fbmegas process
zip	Process used to calculate hash values during integrity checks
fbmegas_reset.sh	Script that removes tasks registered for periodic execution
fbmegas_set.sh	Script that registers tasks to be executed periodically

Ports used in product operation

No port is used for the operation of FilingBox MEGA2 v2 Linux Client.

Caution

Although no port is required for product operation, check the currently used ports and remove or deactivate unnecessary ones.
